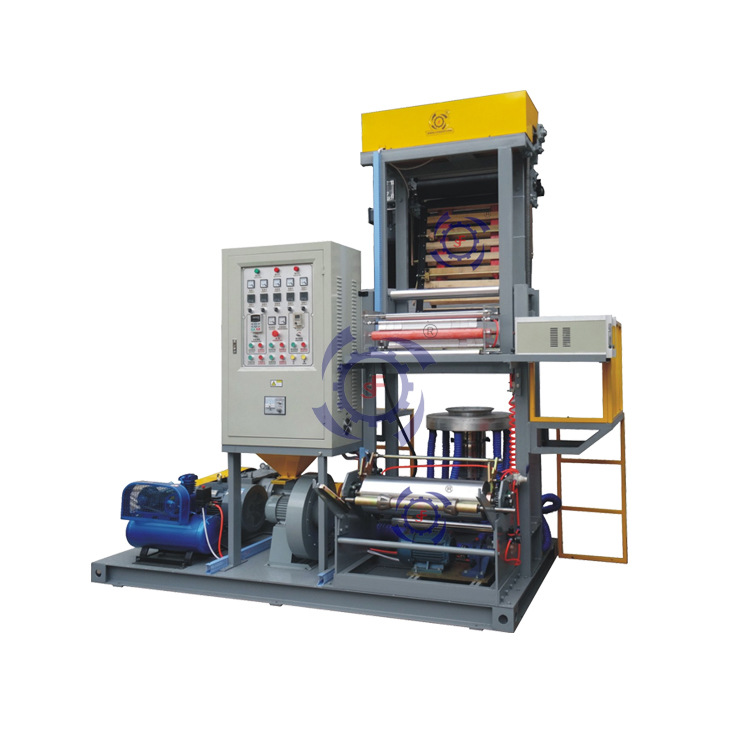

SJ-M系列迷你吹膜機
SJ-M Series Mini Film Blowing Machine
性能及特點(Performance and Characteristics)
本機利用HDPE或LDPE為原料,經加熱、基礎吹膜、拉伸、卷曲后即成圓筒薄膜,加工出的塑料薄膜廣泛使用于超市方便袋、垃圾袋等各種塑料包裝。
1. The machine take the HDPE or LDPE as raw material through heating,extrusion,blowing,stretch,winder and final be roll thin film.
2. The finished plastic thin film is widely used for supermarket bag,garbage bag,various plastic package bag.
可選配置 Optional Device
自動上料 Auto loader
氣漲軸 A ir shaft
旋轉模頭裝置 Rotary Die
主要技術參數
型號 | Model | SJ-M50/FM600 |
螺桿直徑 | Diameter of screw | Φ50mm |
薄膜折徑 | Reduced diameter of film(mm) | 100-600mm |
薄膜單面厚度 | Single-sided Thickness of film(mm) | 0.01-0.10mm |
擠出量 | Max Output(kg/h) | 35kg/h |
長徑比 | L/D | 28:1 |
主機功率 | Power of main motor(kw) | 11KW |
牽引電機功率 | power of main traction motor(kw) | 0.75KW |
加熱功率 | Heating Power ( kw) | 11KW |
外形尺寸 | Outline Dimension(LXWXH)(mm) | 2400X1500X2200mm |
機重 | Weight(T) | 1500kg |
